Brand Name : | Lake |
Model Number : | All models |
Certification : | API |
Price : | USD20-USD200 per piece |
Payment Terms : | T/T, Western Union |
Supply Ability : | 3000 pcs per month |
Delivery Time : | 30days |

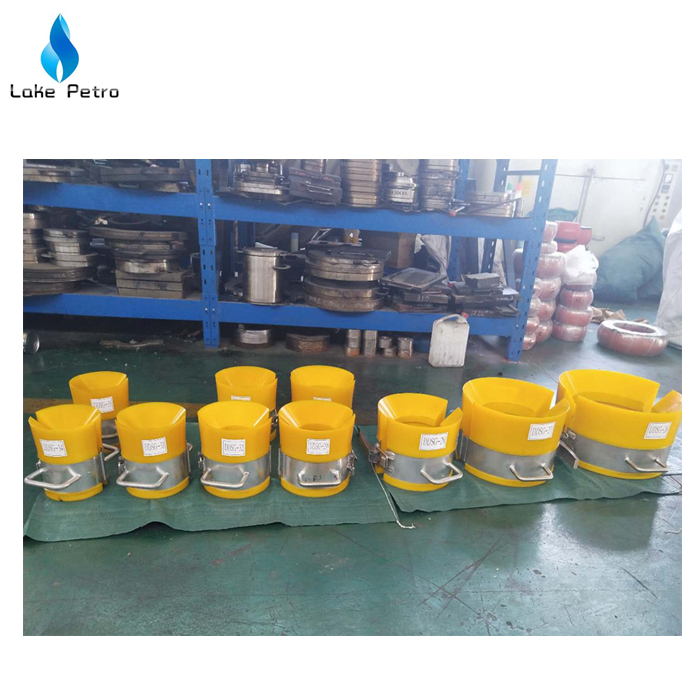

API Oilfield Stabbing Guide for pipes
Stabbing guides allow for quicker, easier stabbing and adds
protection from stabbing damage to threaded connections.
The self-adjusting latch holds the stabbing guide in place on both
new and worn box ODs, and the spring loaded-lever, when triggered,
releases the guide for quick removal after stabbing.
When stabbing joints of pipe, the geometry of the stabbing guide
ensures the two joints are perfectly concentric, allowing them to
be screwed together and torqued properly.
There are always two main features when referring to stabbing guide
geometry: the thru-bore (top) and the counterbore (bottom). The
counterbore slides over and rests on the box end of the pipe
(female), while the thru-bore guides the pin threads (male) to
align with the box threads. It is common practice to make the
thru-bore and counterbore out of a strong, durable material that is
somewhat elastic. These types of materials vary widely; care should
be taken to select one that will stand up to all working conditions
it may encounter including extreme temperatures, drilling fluids,
corrosive chemicals, water, impact, fatigue, etc.
![]() |
