| Brand Name : | Lake |
| Model Number : | All models |
| Certification : | API |
| Price : | USD200-USD2000 per piece |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 30 set per month |
| Delivery Time : | 30days |

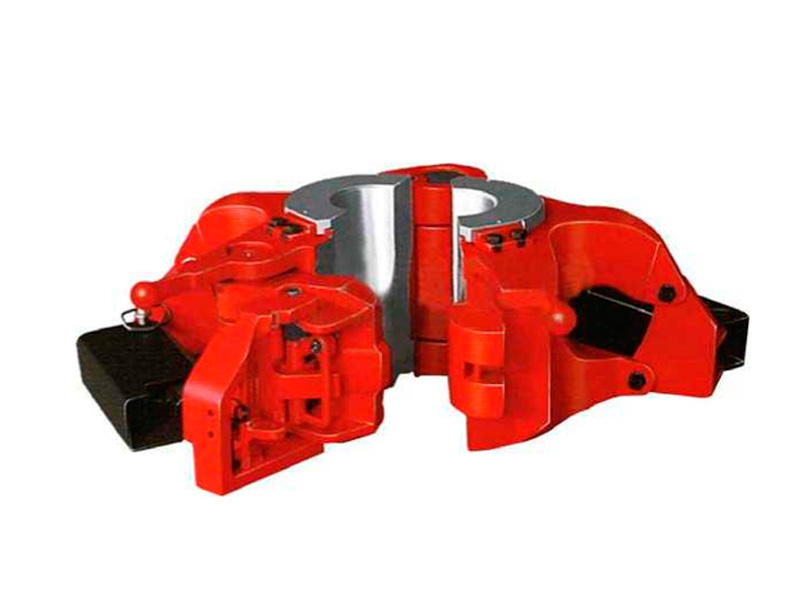

Y series slip type elevators
The slip type elevators are indispensable tools in handling and hoisting drill pipes, casings and tubings in oil drilling and well tripping operation. It's especially suitable for hoisting integrated tubing sub, integral joint casing and electric submersible pump column. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.
| Main Technical Parameters: | |||
| Model | Size | Rated Capacity | |
| mm(in) | kN | Short Tons | |
| HYT | 60.3-88.9(2.3/8-3.1/2) | 1350 | 150 |
| YT | 33.4-88.9(1.3/5-3.1/2) | 675 | 75 |
| MYT | 33.4-73(1.3/5-2.7/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-1.1/16) | 180 | 20 |
| HYC | 88.9-139.7(3.1/2-7) | 1800 | 200 |
| MYC | 88.9-117.8(3.1/2-7) | 1125 | 125 |
| YC | 88.9-117.8(3.1/2-7) | 675 | 75 |
|
|
